#include <intra_reader.h>

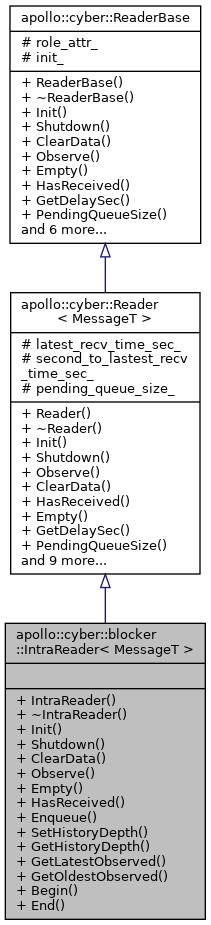

Inheritance diagram for apollo::cyber::blocker::IntraReader< MessageT >:

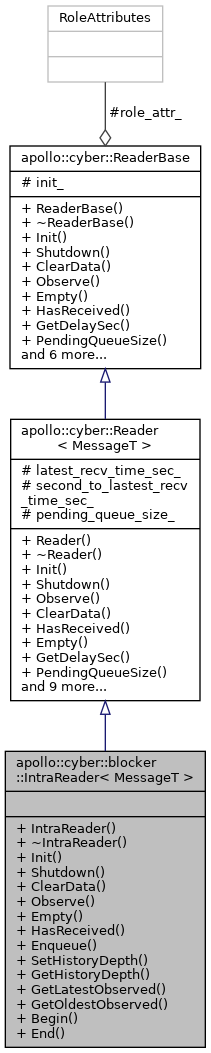

Collaboration diagram for apollo::cyber::blocker::IntraReader< MessageT >:

Public Types
using	MessagePtr = std::shared_ptr< MessageT >

using	Callback = std::function< void(const std::shared_ptr< MessageT > &)>

using	Iterator = typename std::list< std::shared_ptr< MessageT > >::const_iterator

Public Types inherited from apollo::cyber::Reader< MessageT >
using	BlockerPtr = std::unique_ptr< blocker::Blocker< MessageT > >

using	ReceiverPtr = std::shared_ptr< transport::Receiver< MessageT > >

using	ChangeConnection = typename service_discovery::Manager::ChangeConnection

using	Iterator = typename std::list< std::shared_ptr< MessageT > >::const_iterator

Public Member Functions
	IntraReader (const proto::RoleAttributes &attr, const Callback &callback)

virtual	~IntraReader ()

bool	Init () override
	Init the Reader object. More...

void	Shutdown () override
	Shutdown the Reader object. More...

void	ClearData () override
	Clear local data. More...

void	Observe () override
	Get stored data. More...

bool	Empty () const override
	Query whether the Reader has data to be handled. More...

bool	HasReceived () const override
	Query whether we have received data since last clear. More...

void	Enqueue (const std::shared_ptr< MessageT > &msg) override
	Push `msg` to Blocker's `PublishQueue` More...

void	SetHistoryDepth (const uint32_t &depth) override
	Set Blocker's `PublishQueue`'s capacity to `depth` More...

uint32_t	GetHistoryDepth () const override
	Get Blocker's `PublishQueue`'s capacity. More...

std::shared_ptr< MessageT >	GetLatestObserved () const override
	Get the latest message we `Observe` More...

std::shared_ptr< MessageT >	GetOldestObserved () const override
	Get the oldest message we `Observe` More...

Iterator	Begin () const override
	Get the begin iterator of `ObserveQueue`, used to traverse. More...

Iterator	End () const override
	Get the end iterator of `ObserveQueue`, used to traverse. More...

Public Member Functions inherited from apollo::cyber::Reader< MessageT >
	Reader (const proto::RoleAttributes &role_attr, const CallbackFunc< MessageT > &reader_func=nullptr, uint32_t pending_queue_size=DEFAULT_PENDING_QUEUE_SIZE)

virtual	~Reader ()

bool	Init () override
	Init Reader. More...

void	Shutdown () override
	Shutdown Reader. More...

void	Observe () override
	Get All data that `Blocker` stores. More...

void	ClearData () override
	Clear `Blocker`'s data. More...

bool	HasReceived () const override
	Query whether we have received data since last clear. More...

bool	Empty () const override
	Query whether the Reader has data to be handled. More...

double	GetDelaySec () const override
	Get time interval of since last receive message. More...

uint32_t	PendingQueueSize () const override
	Get pending_queue_size configuration. More...

bool	HasWriter () override
	Is there is at least one writer publish the channel that we subscribes? More...

void	GetWriters (std::vector< proto::RoleAttributes > *writers) override
	Get all writers pushlish the channel we subscribes. More...

Public Member Functions inherited from apollo::cyber::ReaderBase
	ReaderBase (const proto::RoleAttributes &role_attr)

virtual	~ReaderBase ()

const std::string &	GetChannelName () const
	Get Reader's Channel name. More...

uint64_t	ChannelId () const
	Get Reader's Channel id. More...

const proto::QosProfile &	QosProfile () const
	Get qos profile. You can see qos description. More...

bool	IsInit () const
	Query whether the Reader is initialized. More...

Additional Inherited Members
Protected Attributes inherited from apollo::cyber::Reader< MessageT >
double	latest_recv_time_sec_ = -1.0

double	second_to_lastest_recv_time_sec_ = -1.0

uint32_t	pending_queue_size_

Protected Attributes inherited from apollo::cyber::ReaderBase
proto::RoleAttributes	role_attr_

std::atomic< bool >	init_

Member Typedef Documentation

◆ Callback

template<typename MessageT >

using apollo::cyber::blocker::IntraReader< MessageT >::Callback = std::function<void(const std::shared_ptr<MessageT>&)>

◆ Iterator

template<typename MessageT >

using apollo::cyber::blocker::IntraReader< MessageT >::Iterator = typename std::list<std::shared_ptr<MessageT> >::const_iterator

◆ MessagePtr

template<typename MessageT >

using apollo::cyber::blocker::IntraReader< MessageT >::MessagePtr = std::shared_ptr<MessageT>

Constructor & Destructor Documentation

◆ IntraReader()

template<typename MessageT >

apollo::cyber::blocker::IntraReader< MessageT >::IntraReader	(	const proto::RoleAttributes &	attr,
		const Callback &	callback
	)

◆ ~IntraReader()

template<typename MessageT >

apollo::cyber::blocker::IntraReader< MessageT >::~IntraReader ( )

virtual

Member Function Documentation

◆ Begin()

template<typename MessageT >

auto apollo::cyber::blocker::IntraReader< MessageT >::Begin ( ) const

overridevirtual

Get the begin iterator of ObserveQueue, used to traverse.

Returns: Iterator begin iterator

Reimplemented from apollo::cyber::Reader< MessageT >.

◆ ClearData()

template<typename MessageT >

void apollo::cyber::blocker::IntraReader< MessageT >::ClearData ( )

overridevirtual

Clear local data.

Implements apollo::cyber::ReaderBase.

◆ Empty()

template<typename MessageT >

bool apollo::cyber::blocker::IntraReader< MessageT >::Empty ( ) const

overridevirtual

Query whether the Reader has data to be handled.

Returns: true if data container is empty; false if data container has data

Implements apollo::cyber::ReaderBase.

◆ End()

template<typename MessageT >

auto apollo::cyber::blocker::IntraReader< MessageT >::End ( ) const

overridevirtual

Get the end iterator of ObserveQueue, used to traverse.

Returns: Iterator begin iterator

Reimplemented from apollo::cyber::Reader< MessageT >.

◆ Enqueue()

template<typename MessageT >

void apollo::cyber::blocker::IntraReader< MessageT >::Enqueue ( const std::shared_ptr< MessageT > & msg )

overridevirtual

Push msg to Blocker's PublishQueue

Parameters

msg	message ptr to be pushed

Reimplemented from apollo::cyber::Reader< MessageT >.

◆ GetHistoryDepth()

template<typename MessageT >

uint32_t apollo::cyber::blocker::IntraReader< MessageT >::GetHistoryDepth ( ) const

overridevirtual

Get Blocker's PublishQueue's capacity.

Returns: uint32_t depth of the history

Reimplemented from apollo::cyber::Reader< MessageT >.

◆ GetLatestObserved()

template<typename MessageT >

std::shared_ptr< MessageT > apollo::cyber::blocker::IntraReader< MessageT >::GetLatestObserved ( ) const

overridevirtual

Get the latest message we Observe

Returns: std::shared_ptr<MessageT> the latest message

Reimplemented from apollo::cyber::Reader< MessageT >.

◆ GetOldestObserved()

template<typename MessageT >

std::shared_ptr< MessageT > apollo::cyber::blocker::IntraReader< MessageT >::GetOldestObserved ( ) const

overridevirtual

Get the oldest message we Observe

Returns: std::shared_ptr<MessageT> the oldest message

Reimplemented from apollo::cyber::Reader< MessageT >.

◆ HasReceived()

template<typename MessageT >

bool apollo::cyber::blocker::IntraReader< MessageT >::HasReceived ( ) const

overridevirtual

Query whether we have received data since last clear.

Returns: true if the reader has received data; false if the reader has not received data

Implements apollo::cyber::ReaderBase.

◆ Init()

template<typename MessageT >

bool apollo::cyber::blocker::IntraReader< MessageT >::Init ( )

overridevirtual

Init the Reader object.

Returns: true if init successfully; false if init failed

Implements apollo::cyber::ReaderBase.

◆ Observe()

template<typename MessageT >

void apollo::cyber::blocker::IntraReader< MessageT >::Observe ( )

overridevirtual

Get stored data.

Implements apollo::cyber::ReaderBase.

◆ SetHistoryDepth()

template<typename MessageT >

void apollo::cyber::blocker::IntraReader< MessageT >::SetHistoryDepth ( const uint32_t & depth )

overridevirtual

Set Blocker's PublishQueue's capacity to depth

Parameters

depth the value you want to set

Reimplemented from apollo::cyber::Reader< MessageT >.

◆ Shutdown()

template<typename MessageT >

void apollo::cyber::blocker::IntraReader< MessageT >::Shutdown ( )

overridevirtual

Shutdown the Reader object.

Implements apollo::cyber::ReaderBase.

The documentation for this class was generated from the following file:

cyber/blocker/intra_reader.h
