apollo::cyber::ReaderBase Class Reference

Base Class for Reader Reader is identified by one apollo::cyber::proto::RoleAttribute, it contains the channel_name, channel_id that we subscribe, and host_name, process_id and node that we are located, and qos that describes our transportation quality. More...

#include <reader_base.h>

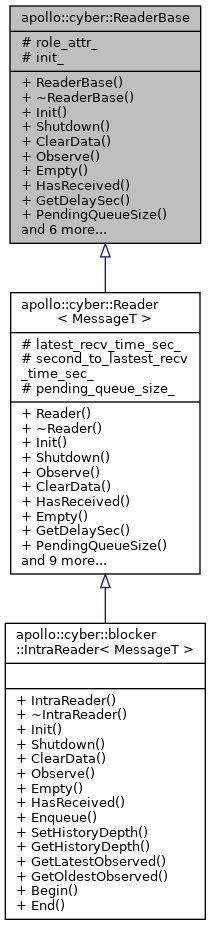

Inheritance diagram for apollo::cyber::ReaderBase:

Collaboration diagram for apollo::cyber::ReaderBase:

Public Member Functions
	ReaderBase (const proto::RoleAttributes &role_attr)
virtual	~ReaderBase ()
virtual bool	Init ()=0
	Init the Reader object. More...
virtual void	Shutdown ()=0
	Shutdown the Reader object. More...
virtual void	ClearData ()=0
	Clear local data. More...
virtual void	Observe ()=0
	Get stored data. More...
virtual bool	Empty () const =0
	Query whether the Reader has data to be handled. More...
virtual bool	HasReceived () const =0
	Query whether we have received data since last clear. More...
virtual double	GetDelaySec () const =0
	Get time interval of since last receive message. More...
virtual uint32_t	PendingQueueSize () const =0
	Get the value of pending queue size. More...
virtual bool	HasWriter ()
	Query is there any writer that publish the subscribed channel. More...
virtual void	GetWriters (std::vector< proto::RoleAttributes > *writers)
	Get all writers pushlish the channel we subscribes. More...
const std::string &	GetChannelName () const
	Get Reader's Channel name. More...
uint64_t	ChannelId () const
	Get Reader's Channel id. More...
const proto::QosProfile &	QosProfile () const
	Get qos profile. You can see qos description. More...
bool	IsInit () const
	Query whether the Reader is initialized. More...

Protected Attributes
proto::RoleAttributes	role_attr_
std::atomic< bool >	init_

Detailed Description

Base Class for Reader Reader is identified by one apollo::cyber::proto::RoleAttribute, it contains the channel_name, channel_id that we subscribe, and host_name, process_id and node that we are located, and qos that describes our transportation quality.

Constructor & Destructor Documentation

ReaderBase()

apollo::cyber::ReaderBase::ReaderBase ( const proto::RoleAttributes &  role_attr )

inlineexplicit

~ReaderBase()

virtual apollo::cyber::ReaderBase::~ReaderBase ( )

inlinevirtual

Member Function Documentation

ChannelId()

uint64_t apollo::cyber::ReaderBase::ChannelId ( ) const

inline

Get Reader's Channel id.

Returns

uint64_t channel id

ClearData()

virtual void apollo::cyber::ReaderBase::ClearData ( )

pure virtual

Clear local data.

Implemented in apollo::cyber::Reader< MessageT >, and apollo::cyber::blocker::IntraReader< MessageT >.

Empty()

virtual bool apollo::cyber::ReaderBase::Empty ( ) const

pure virtual

Query whether the Reader has data to be handled.

Returns

true if data container is empty

false if data container has data

Implemented in apollo::cyber::Reader< MessageT >, and apollo::cyber::blocker::IntraReader< MessageT >.

GetChannelName()

const std::string& apollo::cyber::ReaderBase::GetChannelName ( ) const

inline

Get Reader's Channel name.

Returns

const std::string& channel name

GetDelaySec()

virtual double apollo::cyber::ReaderBase::GetDelaySec ( ) const

pure virtual

Get time interval of since last receive message.

Returns

double seconds delay

Implemented in apollo::cyber::Reader< MessageT >.

GetWriters()

virtual void apollo::cyber::ReaderBase::GetWriters ( std::vector< proto::RoleAttributes > *  writers )

inlinevirtual

Get all writers pushlish the channel we subscribes.

Parameters

writers

result RoleAttributes vector

Reimplemented in apollo::cyber::Reader< MessageT >.

HasReceived()

virtual bool apollo::cyber::ReaderBase::HasReceived ( ) const

pure virtual

Query whether we have received data since last clear.

Returns

true if the reader has received data

false if the reader has not received data

Implemented in apollo::cyber::Reader< MessageT >, and apollo::cyber::blocker::IntraReader< MessageT >.

HasWriter()

virtual bool apollo::cyber::ReaderBase::HasWriter ( )

inlinevirtual

Query is there any writer that publish the subscribed channel.

Returns

true if there is at least one Writer publish the channel

false if there is no Writer publish the channel

Reimplemented in apollo::cyber::Reader< MessageT >.

Init()

virtual bool apollo::cyber::ReaderBase::Init ( )

pure virtual

Init the Reader object.

Returns

true if init successfully

false if init failed

Implemented in apollo::cyber::Reader< MessageT >, and apollo::cyber::blocker::IntraReader< MessageT >.

IsInit()

bool apollo::cyber::ReaderBase::IsInit ( ) const

inline

Query whether the Reader is initialized.

Returns

true if the Reader has been inited

false if the Reader has not been inited

Observe()

virtual void apollo::cyber::ReaderBase::Observe ( )

pure virtual

Get stored data.

Implemented in apollo::cyber::Reader< MessageT >, and apollo::cyber::blocker::IntraReader< MessageT >.

PendingQueueSize()

virtual uint32_t apollo::cyber::ReaderBase::PendingQueueSize ( ) const

pure virtual

Get the value of pending queue size.

Returns

uint32_t result value

Implemented in apollo::cyber::Reader< MessageT >.

QosProfile()

const proto::QosProfile& apollo::cyber::ReaderBase::QosProfile ( ) const

inline

Get qos profile. You can see qos description.

Returns

const proto::QosProfile& result qos

Shutdown()

virtual void apollo::cyber::ReaderBase::Shutdown ( )

pure virtual

Shutdown the Reader object.

Implemented in apollo::cyber::Reader< MessageT >, and apollo::cyber::blocker::IntraReader< MessageT >.

Member Data Documentation

init_

std::atomic<bool> apollo::cyber::ReaderBase::init_

protected

role_attr_

proto::RoleAttributes apollo::cyber::ReaderBase::role_attr_

protected

---

The documentation for this class was generated from the following file:

• cyber/node/reader_base.h
