apollo::cyber::Writer< MessageT > Class Template Reference

#include <writer.h>

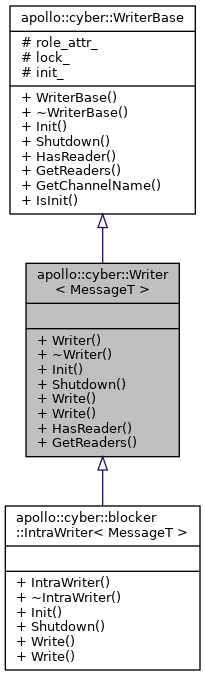

Inheritance diagram for apollo::cyber::Writer< MessageT >:

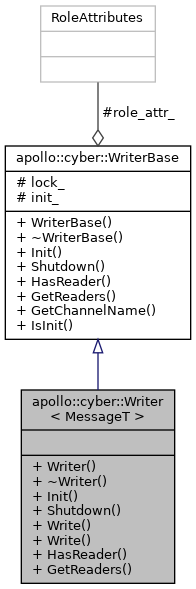

Collaboration diagram for apollo::cyber::Writer< MessageT >:

Public Types
using	TransmitterPtr = std::shared_ptr< transport::Transmitter< MessageT > >
using	ChangeConnection = typename service_discovery::Manager::ChangeConnection

Public Member Functions
	Writer (const proto::RoleAttributes &role_attr)
	Construct a new Writer object. More...
virtual	~Writer ()
bool	Init () override
	Init the Writer. More...
void	Shutdown () override
	Shutdown the Writer. More...
virtual bool	Write (const MessageT &msg)
	Write a MessageT instance. More...
virtual bool	Write (const std::shared_ptr< MessageT > &msg_ptr)
	Write a shared ptr of MessageT. More...
bool	HasReader () override
	Is there any Reader that subscribes our Channel? You can publish message when this return true. More...
void	GetReaders (std::vector< proto::RoleAttributes > *readers) override
	Get all Readers that subscriber our writing channel. More...
Public Member Functions inherited from apollo::cyber::WriterBase
	WriterBase (const proto::RoleAttributes &role_attr)
	Construct a new Writer Base object. More...
virtual	~WriterBase ()
const std::string &	GetChannelName () const
	Get Writer's Channel name. More...
bool	IsInit () const
	Is Writer initialized? More...

Additional Inherited Members
Protected Attributes inherited from apollo::cyber::WriterBase
proto::RoleAttributes	role_attr_
std::mutex	lock_
bool	init_

Member Typedef Documentation

ChangeConnection

template<typename MessageT>

using apollo::cyber::Writer< MessageT >::ChangeConnection = typename service_discovery::Manager::ChangeConnection

TransmitterPtr

template<typename MessageT>

using apollo::cyber::Writer< MessageT >::TransmitterPtr = std::shared_ptr<transport::Transmitter<MessageT> >

Constructor & Destructor Documentation

Writer()

template<typename MessageT >

apollo::cyber::Writer< MessageT >::Writer ( const proto::RoleAttributes &  role_attr )

explicit

Construct a new Writer object.

Parameters

role_attr

we use RoleAttributes to identify a Writer

~Writer()

template<typename MessageT >

apollo::cyber::Writer< MessageT >::~Writer ( )

virtual

Member Function Documentation

GetReaders()

template<typename MessageT >

void apollo::cyber::Writer< MessageT >::GetReaders ( std::vector< proto::RoleAttributes > *  readers )

overridevirtual

Get all Readers that subscriber our writing channel.

Parameters

readers

vector result of RoleAttributes

Reimplemented from apollo::cyber::WriterBase.

HasReader()

template<typename MessageT >

bool apollo::cyber::Writer< MessageT >::HasReader ( )

overridevirtual

Is there any Reader that subscribes our Channel? You can publish message when this return true.

Returns

true if the channel has reader

false if the channel has no reader

Reimplemented from apollo::cyber::WriterBase.

Init()

template<typename MessageT >

bool apollo::cyber::Writer< MessageT >::Init ( )

overridevirtual

Init the Writer.

Returns

true if init successfully

false if init failed

Implements apollo::cyber::WriterBase.

Shutdown()

template<typename MessageT >

void apollo::cyber::Writer< MessageT >::Shutdown ( )

overridevirtual

Shutdown the Writer.

Implements apollo::cyber::WriterBase.

Write() [1/2]

template<typename MessageT >

bool apollo::cyber::Writer< MessageT >::Write ( const MessageT &  msg )

virtual

Write a MessageT instance.

Parameters

msg	the message we want to write

Returns

true if write successfully

false if write failed

Reimplemented in apollo::cyber::blocker::IntraWriter< MessageT >.

Write() [2/2]

template<typename MessageT >

bool apollo::cyber::Writer< MessageT >::Write ( const std::shared_ptr< MessageT > &  msg_ptr )

virtual

Write a shared ptr of MessageT.

Parameters

msg_ptr

the message shared ptr we want to write

Returns

true if write successfully

false if write failed

Reimplemented in apollo::cyber::blocker::IntraWriter< MessageT >.

---

The documentation for this class was generated from the following file:

• cyber/node/writer.h
