apollo::cyber::WriterBase Class Reference

Base class for a Writer. A Writer is an object to send messages through a 'Channel'. More...

#include <writer_base.h>

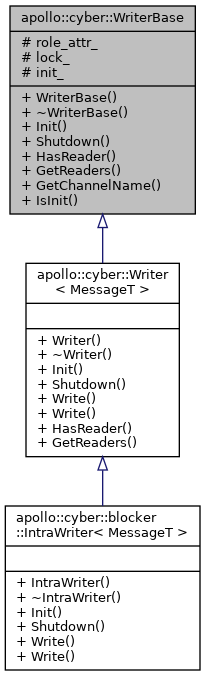

Inheritance diagram for apollo::cyber::WriterBase:

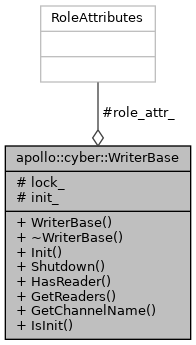

Collaboration diagram for apollo::cyber::WriterBase:

Public Member Functions
	WriterBase (const proto::RoleAttributes &role_attr)
	Construct a new Writer Base object. More...
virtual	~WriterBase ()
virtual bool	Init ()=0
	Init the Writer. More...
virtual void	Shutdown ()=0
	Shutdown the Writer. More...
virtual bool	HasReader ()
	Is there any Reader that subscribes our Channel? You can publish message when this return true. More...
virtual void	GetReaders (std::vector< proto::RoleAttributes > *readers)
	Get all Readers that subscriber our writing channel. More...
const std::string &	GetChannelName () const
	Get Writer's Channel name. More...
bool	IsInit () const
	Is Writer initialized? More...

Protected Attributes
proto::RoleAttributes	role_attr_
std::mutex	lock_
bool	init_

Detailed Description

Base class for a Writer. A Writer is an object to send messages through a 'Channel'.

Warning

One Writer can only write one channel. But different writers can write through the same channel

Constructor & Destructor Documentation

WriterBase()

apollo::cyber::WriterBase::WriterBase ( const proto::RoleAttributes &  role_attr )

inlineexplicit

Construct a new Writer Base object.

Parameters

role_attr

role attributes for this Writer

~WriterBase()

virtual apollo::cyber::WriterBase::~WriterBase ( )

inlinevirtual

Member Function Documentation

GetChannelName()

const std::string& apollo::cyber::WriterBase::GetChannelName ( ) const

inline

Get Writer's Channel name.

Returns

const std::string& const reference to the channel name

GetReaders()

virtual void apollo::cyber::WriterBase::GetReaders ( std::vector< proto::RoleAttributes > *  readers )

inlinevirtual

Get all Readers that subscriber our writing channel.

Parameters

readers

result vector of RoleAttributes

Reimplemented in apollo::cyber::Writer< MessageT >.

HasReader()

virtual bool apollo::cyber::WriterBase::HasReader ( )

inlinevirtual

Is there any Reader that subscribes our Channel? You can publish message when this return true.

Returns

true if the channel has reader

false if the channel has no reader

Reimplemented in apollo::cyber::Writer< MessageT >.

Init()

virtual bool apollo::cyber::WriterBase::Init ( )

pure virtual

Init the Writer.

Returns

true if init success

false if init failed

Implemented in apollo::cyber::Writer< MessageT >, and apollo::cyber::blocker::IntraWriter< MessageT >.

IsInit()

bool apollo::cyber::WriterBase::IsInit ( ) const

inline

Is Writer initialized?

Returns

true if the Writer is inited

false if the Write is not inited

Shutdown()

virtual void apollo::cyber::WriterBase::Shutdown ( )

pure virtual

Shutdown the Writer.

Implemented in apollo::cyber::Writer< MessageT >, and apollo::cyber::blocker::IntraWriter< MessageT >.

Member Data Documentation

init_

bool apollo::cyber::WriterBase::init_

protected

lock_

std::mutex apollo::cyber::WriterBase::lock_

mutableprotected

role_attr_

proto::RoleAttributes apollo::cyber::WriterBase::role_attr_

protected

---

The documentation for this class was generated from the following file:

• cyber/node/writer_base.h
