Client get Response from a responding Service by sending a Request. More...

#include <client.h>

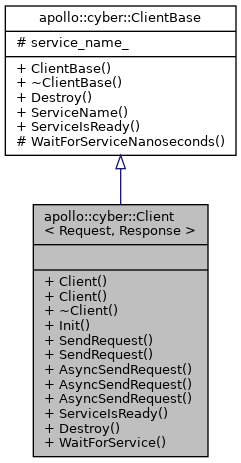

Inheritance diagram for apollo::cyber::Client< Request, Response >:

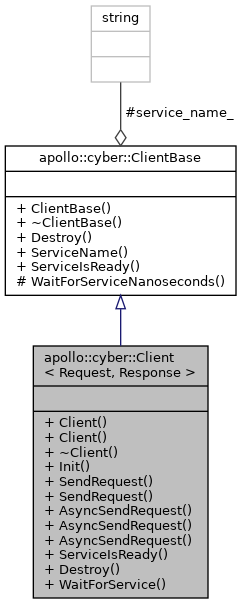

Collaboration diagram for apollo::cyber::Client< Request, Response >:

Public Types
using	SharedRequest = typename std::shared_ptr< Request >

using	SharedResponse = typename std::shared_ptr< Response >

using	Promise = std::promise< SharedResponse >

using	SharedPromise = std::shared_ptr< Promise >

using	SharedFuture = std::shared_future< SharedResponse >

using	CallbackType = std::function< void(SharedFuture)>

Public Member Functions
	Client (const std::string &node_name, const std::string &service_name)
	Construct a new Client object. More...

	Client ()=delete
	forbid Constructing a new Client object with empty params More...

virtual	~Client ()

bool	Init ()
	Init the Client. More...

SharedResponse	SendRequest (SharedRequest request, const std::chrono::seconds &timeout_s=std::chrono::seconds(5))
	Request the Service with a shared ptr Request type. More...

SharedResponse	SendRequest (const Request &request, const std::chrono::seconds &timeout_s=std::chrono::seconds(5))
	Request the Service with a Request object. More...

SharedFuture	AsyncSendRequest (SharedRequest request)
	Send Request shared ptr asynchronously. More...

SharedFuture	AsyncSendRequest (const Request &request)
	Send Request object asynchronously. More...

SharedFuture	AsyncSendRequest (SharedRequest request, CallbackType &&cb)
	Send Request shared ptr asynchronously and invoke `cb` after we get response. More...

bool	ServiceIsReady () const
	Is the Service is ready? More...

void	Destroy ()
	destroy this Client More...

template<typename RatioT = std::milli>
bool	WaitForService (std::chrono::duration< int64_t, RatioT > timeout=std::chrono::duration< int64_t, RatioT >(-1))
	wait for the connection with the Service established More...

Public Member Functions inherited from apollo::cyber::ClientBase
	ClientBase (const std::string &service_name)
	Construct a new Client Base object. More...

virtual	~ClientBase ()

const std::string &	ServiceName () const
	Get the service name. More...

Additional Inherited Members
Protected Member Functions inherited from apollo::cyber::ClientBase
bool	WaitForServiceNanoseconds (std::chrono::nanoseconds time_out)

Protected Attributes inherited from apollo::cyber::ClientBase
std::string	service_name_

Detailed Description

template<typename Request, typename Response>
class apollo::cyber::Client< Request, Response >

Client get Response from a responding Service by sending a Request.

Template Parameters

Request	the `Service` request type
Response	the `Service` response type

Warning: One Client can only request one Service

Member Typedef Documentation

◆ CallbackType

template<typename Request, typename Response>

using apollo::cyber::Client< Request, Response >::CallbackType = std::function<void(SharedFuture)>

◆ Promise

template<typename Request, typename Response>

using apollo::cyber::Client< Request, Response >::Promise = std::promise<SharedResponse>

◆ SharedFuture

template<typename Request, typename Response>

using apollo::cyber::Client< Request, Response >::SharedFuture = std::shared_future<SharedResponse>

◆ SharedPromise

template<typename Request, typename Response>

using apollo::cyber::Client< Request, Response >::SharedPromise = std::shared_ptr<Promise>

◆ SharedRequest

template<typename Request, typename Response>

using apollo::cyber::Client< Request, Response >::SharedRequest = typename std::shared_ptr<Request>

◆ SharedResponse

template<typename Request, typename Response>

using apollo::cyber::Client< Request, Response >::SharedResponse = typename std::shared_ptr<Response>

Constructor & Destructor Documentation

◆ Client() [1/2]

template<typename Request, typename Response>

apollo::cyber::Client< Request, Response >::Client	(	const std::string &	node_name,
		const std::string &	service_name
	)

inline

Construct a new Client object.

Parameters

node_name	used to fill RoleAttribute
service_name	service name the Client can request

◆ Client() [2/2]

template<typename Request, typename Response>

apollo::cyber::Client< Request, Response >::Client ( )

delete

forbid Constructing a new Client object with empty params

◆ ~Client()

template<typename Request, typename Response>

virtual apollo::cyber::Client< Request, Response >::~Client ( )

inlinevirtual

Member Function Documentation

◆ AsyncSendRequest() [1/3]

template<typename Request , typename Response >

Client< Request, Response >::SharedFuture Client::AsyncSendRequest ( SharedRequest request )

Send Request shared ptr asynchronously.

◆ AsyncSendRequest() [2/3]

template<typename Request , typename Response >

Client< Request, Response >::SharedFuture Client::AsyncSendRequest ( const Request & request )

Send Request object asynchronously.

◆ AsyncSendRequest() [3/3]

template<typename Request , typename Response >

Client< Request, Response >::SharedFuture Client::AsyncSendRequest	(	SharedRequest	request,
		CallbackType &&	cb
	)

Send Request shared ptr asynchronously and invoke cb after we get response.

Parameters

request	Request shared ptr
cb	callback function after we get response

Returns: SharedFuture a std::future shared ptr

◆ Destroy()

template<typename Request , typename Response >

void Client::Destroy ( )

virtual

destroy this Client

Implements apollo::cyber::ClientBase.

◆ Init()

template<typename Request , typename Response >

bool Client::Init ( )

Init the Client.

Returns: true if init successfully; false if init failed

◆ SendRequest() [1/2]

template<typename Request , typename Response >

Client< Request, Response >::SharedResponse Client::SendRequest	(	SharedRequest	request,
		const std::chrono::seconds &	timeout_s = `std::chrono::seconds(5)`
	)

Request the Service with a shared ptr Request type.

Parameters

request	shared ptr of Request type
timeout_s	request timeout, if timeout, response will be empty

Returns: SharedResponse result of this request

◆ SendRequest() [2/2]

template<typename Request , typename Response >

Client< Request, Response >::SharedResponse Client::SendRequest	(	const Request &	request,
		const std::chrono::seconds &	timeout_s = `std::chrono::seconds(5)`
	)

Request the Service with a Request object.

Parameters

request	Request object
timeout_s	request timeout, if timeout, response will be empty

Returns: SharedResponse result of this request

◆ ServiceIsReady()

template<typename Request , typename Response >

bool Client::ServiceIsReady ( ) const

virtual

Is the Service is ready?

Implements apollo::cyber::ClientBase.

◆ WaitForService()

template<typename Request, typename Response>

template<typename RatioT = std::milli>

bool apollo::cyber::Client< Request, Response >::WaitForService ( std::chrono::duration< int64_t, RatioT > timeout = std::chrono::duration<int64_t, RatioT>(-1) )

inline

wait for the connection with the Service established

Template Parameters

RatioT timeout unit, default is std::milli

Parameters

timeout wait time in unit of RatioT

Returns: true if the connection established; false if timeout

The documentation for this class was generated from the following file:

cyber/service/client.h
