apollo::prediction::network::NetModel Class Reference

NetModel is a base class for specific network model It contains a pure virtual function Run which must be implemented in derived class. More...

#include <net_model.h>

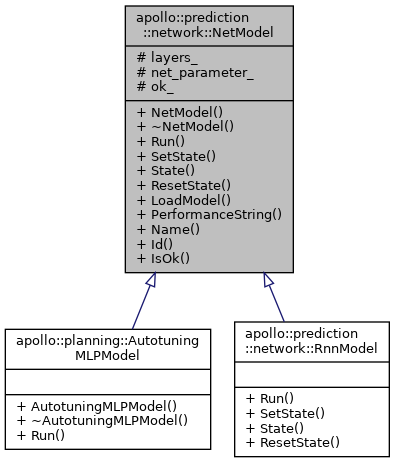

Inheritance diagram for apollo::prediction::network::NetModel:

Collaboration diagram for apollo::prediction::network::NetModel:

Public Member Functions
	NetModel ()=default
	Constructor. More...
virtual	~NetModel ()=default
	Destructor. More...
virtual void	Run (const std::vector< Eigen::MatrixXf > &inputs, Eigen::MatrixXf *output) const =0
	Compute the model output from inputs. More...
virtual void	SetState (const std::vector< Eigen::MatrixXf > &states)
	Set the internal state of a network model. More...
virtual void	State (std::vector< Eigen::MatrixXf > *states) const
	Access to the internal state of a network model. More...
virtual void	ResetState () const
	Set the internal state of a model. More...
bool	LoadModel (const NetParameter &net_parameter)
	Load network parameters from a protobuf message. More...
std::string	PerformanceString () const
	Shows the performance information of a network. More...
const std::string &	Name () const
	Name of a network model. More...
int	Id () const
	Id of a network model. More...
bool	IsOk () const
	Indicate the state of a network model. More...

Protected Attributes
std::vector< std::unique_ptr< Layer > >	layers_
NetParameter	net_parameter_
bool	ok_ = false

Detailed Description

NetModel is a base class for specific network model It contains a pure virtual function Run which must be implemented in derived class.

Constructor & Destructor Documentation

NetModel()

apollo::prediction::network::NetModel::NetModel ( )

default

Constructor.

~NetModel()

virtual apollo::prediction::network::NetModel::~NetModel ( )

virtualdefault

Destructor.

Member Function Documentation

Id()

int apollo::prediction::network::NetModel::Id

(

)

const

Id of a network model.

Returns

Id of a network model

IsOk()

bool apollo::prediction::network::NetModel::IsOk

(

)

const

Indicate the state of a network model.

Returns

True of a network model is load successively, otherwise False.

LoadModel()

bool apollo::prediction::network::NetModel::LoadModel

(

const NetParameter &

net_parameter

)

Load network parameters from a protobuf message.

Parameters

NetParameter

is a protobuf message

Returns

True if successfully loaded, otherwise False

Name()

const std::string& apollo::prediction::network::NetModel::Name

(

)

const

Name of a network model.

Returns

Name of a network model

PerformanceString()

std::string apollo::prediction::network::NetModel::PerformanceString

(

)

const

Shows the performance information of a network.

Returns

Performance of a network model

ResetState()

virtual void apollo::prediction::network::NetModel::ResetState ( ) const

inlinevirtual

Set the internal state of a model.

Parameters

A	specified internal state in a vector of Eigen::MatrixXf

Reimplemented in apollo::prediction::network::RnnModel.

Run()

virtual void apollo::prediction::network::NetModel::Run ( const std::vector< Eigen::MatrixXf > &  inputs, Eigen::MatrixXf *  output  ) const

pure virtual

Compute the model output from inputs.

Parameters

Inputs	to a network
Output	of a network will be returned

Implemented in apollo::prediction::network::RnnModel, and apollo::planning::AutotuningMLPModel.

SetState()

virtual void apollo::prediction::network::NetModel::SetState ( const std::vector< Eigen::MatrixXf > &  states )

inlinevirtual

Set the internal state of a network model.

Parameters

A	specified internal state in a vector of Eigen::MatrixXf

Reimplemented in apollo::prediction::network::RnnModel.

State()

virtual void apollo::prediction::network::NetModel::State ( std::vector< Eigen::MatrixXf > *  states ) const

inlinevirtual

Access to the internal state of a network model.

Returns

Internal state in a vector of Eigen::MatrixXf of the model

Reimplemented in apollo::prediction::network::RnnModel.

Member Data Documentation

layers_

std::vector<std::unique_ptr<Layer> > apollo::prediction::network::NetModel::layers_

protected

net_parameter_

NetParameter apollo::prediction::network::NetModel::net_parameter_

protected

ok_

bool apollo::prediction::network::NetModel::ok_ = false

protected

---

The documentation for this class was generated from the following file:

• modules/prediction/network/net_model.h
