apollo::dreamview::WebSocketHandler Class Reference

The WebSocketHandler, built on top of CivetWebSocketHandler, is a websocket handler that handles different types of websocket related events. More...

#include <websocket_handler.h>

Inheritance diagram for apollo::dreamview::WebSocketHandler:

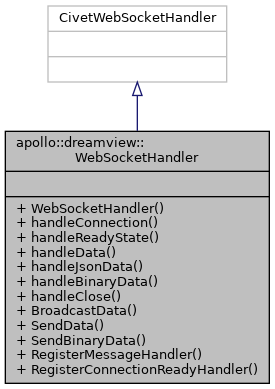

Collaboration diagram for apollo::dreamview::WebSocketHandler:

Public Types
using	Json = nlohmann::json
using	Connection = struct mg_connection
using	MessageHandler = std::function< void(const Json &, Connection *)>
using	ConnectionReadyHandler = std::function< void(Connection *)>

Public Member Functions
	WebSocketHandler (const std::string &name)
bool	handleConnection (CivetServer *server, const Connection *conn) override
	Callback method for when the client intends to establish a websocket connection, before websocket handshake. More...
void	handleReadyState (CivetServer *server, Connection *conn) override
	Callback method for when websocket handshake is successfully completed, and connection is ready for data exchange. More...
bool	handleData (CivetServer *server, Connection *conn, int bits, char *data, size_t data_len) override
	Callback method for when a data frame has been received from the client. More...
bool	handleJsonData (Connection *conn, const std::string &data)
bool	handleBinaryData (Connection *conn, const std::string &data)
void	handleClose (CivetServer *server, const Connection *conn) override
	Callback method for when the connection is closed. More...
bool	BroadcastData (const std::string &data, bool skippable=false)
	Sends the provided data to all the connected clients. More...
bool	SendData (Connection *conn, const std::string &data, bool skippable=false, int op_code=MG_WEBSOCKET_OPCODE_TEXT)
	Sends the provided data to a specific connected client. More...
bool	SendBinaryData (Connection *conn, const std::string &data, bool skippable=false)
void	RegisterMessageHandler (std::string type, MessageHandler handler)
	Add a new message handler for a message type. More...
void	RegisterConnectionReadyHandler (ConnectionReadyHandler handler)
	Add a new handler for new connections. More...

Detailed Description

The WebSocketHandler, built on top of CivetWebSocketHandler, is a websocket handler that handles different types of websocket related events.

Member Typedef Documentation

Connection

using apollo::dreamview::WebSocketHandler::Connection = struct mg_connection

ConnectionReadyHandler

using apollo::dreamview::WebSocketHandler::ConnectionReadyHandler = std::function<void(Connection *)>

Json

using apollo::dreamview::WebSocketHandler::Json = nlohmann::json

MessageHandler

using apollo::dreamview::WebSocketHandler::MessageHandler = std::function<void(const Json &, Connection *)>

Constructor & Destructor Documentation

WebSocketHandler()

apollo::dreamview::WebSocketHandler::WebSocketHandler ( const std::string &  name )

inlineexplicit

Member Function Documentation

BroadcastData()

bool apollo::dreamview::WebSocketHandler::BroadcastData	(	const std::string &	data,
		bool	skippable = false
	)

Sends the provided data to all the connected clients.

Parameters

data	The message string to be sent.

handleBinaryData()

bool apollo::dreamview::WebSocketHandler::handleBinaryData	(	Connection *	conn,
		const std::string &	data
	)

handleClose()

void apollo::dreamview::WebSocketHandler::handleClose ( CivetServer *  server, const Connection *  conn  )

override

Callback method for when the connection is closed.

Parameters

server	the calling server
conn	the connection information

handleConnection()

bool apollo::dreamview::WebSocketHandler::handleConnection ( CivetServer *  server, const Connection *  conn  )

inlineoverride

Callback method for when the client intends to establish a websocket connection, before websocket handshake.

Parameters

server	the calling server
conn	the connection information

Returns

true to keep socket open, false to close it

handleData()

bool apollo::dreamview::WebSocketHandler::handleData ( CivetServer *  server, Connection *  conn, int  bits, char *  data, size_t  data_len  )

override

Callback method for when a data frame has been received from the client.

In the websocket protocol, data is transmitted using a sequence of frames, and each frame received invokes this callback method. Since the type of opcode (text, binary, etc) is given in the first frame, this method stores the opcode in a thread_local variable named current_opcode_. And data from each frame is accumulated to data_ until the final fragment is detected. See websocket RFC at http://tools.ietf.org/html/rfc6455, section 5.4 for more protocol and fragmentation details.

Parameters

server	the calling server
conn	the connection information
bits	first byte of the websocket frame, see websocket RFC at http://tools.ietf.org/html/rfc6455, section 5.2
data	payload, with mask (if any) already applied.
data_len	length of data

Returns

true to keep socket open, false to close it

handleJsonData()

bool apollo::dreamview::WebSocketHandler::handleJsonData	(	Connection *	conn,
		const std::string &	data
	)

handleReadyState()

void apollo::dreamview::WebSocketHandler::handleReadyState ( CivetServer *  server, Connection *  conn  )

override

Callback method for when websocket handshake is successfully completed, and connection is ready for data exchange.

Parameters

server	the calling server
conn	the connection information

RegisterConnectionReadyHandler()

void apollo::dreamview::WebSocketHandler::RegisterConnectionReadyHandler ( ConnectionReadyHandler  handler )

inline

Add a new handler for new connections.

Parameters

handler

The function to handle the new connection in ReadyState.

RegisterMessageHandler()

void apollo::dreamview::WebSocketHandler::RegisterMessageHandler ( std::string  type, MessageHandler  handler  )

inline

Add a new message handler for a message type.

Parameters

type	The name/key to identify the message type.
handler	The function to handle the received message.

SendBinaryData()

bool apollo::dreamview::WebSocketHandler::SendBinaryData	(	Connection *	conn,
		const std::string &	data,
		bool	skippable = false
	)

SendData()

bool apollo::dreamview::WebSocketHandler::SendData	(	Connection *	conn,
		const std::string &	data,
		bool	skippable = false,
		int	op_code = MG_WEBSOCKET_OPCODE_TEXT
	)

Sends the provided data to a specific connected client.

Parameters

conn	The connection to send to.
data	The message string to be sent.
skippable	whether the data is allowed to be skipped if some other is being sent to this connection.

---

The documentation for this class was generated from the following file:

• modules/dreamview/backend/handlers/websocket_handler.h
