The record writer. More...

#include <record_writer.h>

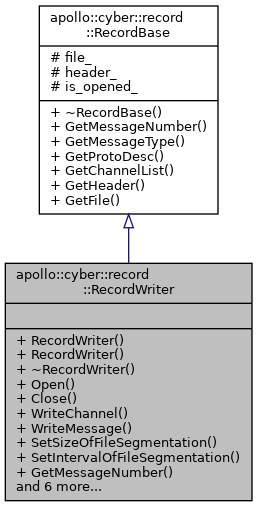

Inheritance diagram for apollo::cyber::record::RecordWriter:

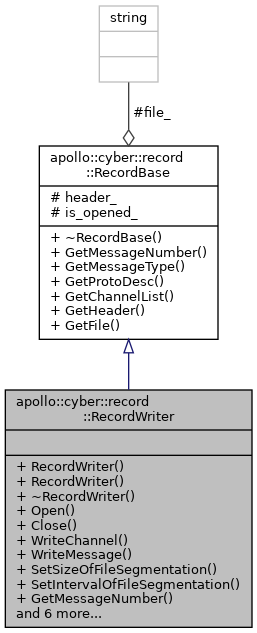

Collaboration diagram for apollo::cyber::record::RecordWriter:

Public Types
using	MessageNumberMap = std::unordered_map< std::string, uint64_t >

using	MessageTypeMap = std::unordered_map< std::string, std::string >

using	MessageProtoDescMap = std::unordered_map< std::string, std::string >

using	FileWriterPtr = std::unique_ptr< RecordFileWriter >

Public Member Functions
	RecordWriter ()
	The default constructor. More...

	RecordWriter (const proto::Header &header)
	The constructor with record header as parameter. More...

virtual	~RecordWriter ()
	Virtual Destructor. More...

bool	Open (const std::string &file)
	Open a record to write. More...

void	Close ()
	Clean the record. More...

bool	WriteChannel (const std::string &channel_name, const std::string &message_type, const std::string &proto_desc)
	Write a channel to record. More...

template<typename MessageT >
bool	WriteMessage (const std::string &channel_name, const MessageT &message, const uint64_t time_nanosec, const std::string &proto_desc="")
	Write a message to record. More...

bool	SetSizeOfFileSegmentation (uint64_t size_kilobytes)
	Set max size (KB) to segment record file. More...

bool	SetIntervalOfFileSegmentation (uint64_t time_sec)
	Set max interval (Second) to segment record file. More...

uint64_t	GetMessageNumber (const std::string &channel_name) const override
	Get message number by channel name. More...

const std::string &	GetMessageType (const std::string &channel_name) const override
	Get message type by channel name. More...

const std::string &	GetProtoDesc (const std::string &channel_name) const override
	Get proto descriptor string by channel name. More...

std::set< std::string >	GetChannelList () const override
	Get channel list. More...

bool	IsNewChannel (const std::string &channel_name) const
	Is a new channel recording or not. More...

template<>
bool	WriteMessage (const std::string &channel_name, const std::string &message, const uint64_t time_nanosec, const std::string &proto_desc)

template<>
bool	WriteMessage (const std::string &channel_name, const std::shared_ptr< message::RawMessage > &message, const uint64_t time_nanosec, const std::string &proto_desc)

Public Member Functions inherited from apollo::cyber::record::RecordBase
virtual	~RecordBase ()=default
	Destructor. More...

const proto::Header &	GetHeader () const
	Get record header. More...

const std::string	GetFile () const
	Get record file path. More...

Additional Inherited Members
Protected Attributes inherited from apollo::cyber::record::RecordBase
std::string	file_

proto::Header	header_

bool	is_opened_ = false

Detailed Description

The record writer.

Member Typedef Documentation

◆ FileWriterPtr

using apollo::cyber::record::RecordWriter::FileWriterPtr = std::unique_ptr<RecordFileWriter>

◆ MessageNumberMap

using apollo::cyber::record::RecordWriter::MessageNumberMap = std::unordered_map<std::string, uint64_t>

◆ MessageProtoDescMap

using apollo::cyber::record::RecordWriter::MessageProtoDescMap = std::unordered_map<std::string, std::string>

◆ MessageTypeMap

using apollo::cyber::record::RecordWriter::MessageTypeMap = std::unordered_map<std::string, std::string>

Constructor & Destructor Documentation

◆ RecordWriter() [1/2]

apollo::cyber::record::RecordWriter::RecordWriter ( )

The default constructor.

◆ RecordWriter() [2/2]

apollo::cyber::record::RecordWriter::RecordWriter ( const proto::Header & header )

explicit

The constructor with record header as parameter.

Parameters

header

◆ ~RecordWriter()

virtual apollo::cyber::record::RecordWriter::~RecordWriter ( )

virtual

Virtual Destructor.

Member Function Documentation

◆ Close()

void apollo::cyber::record::RecordWriter::Close ( )

Clean the record.

◆ GetChannelList()

std::set<std::string> apollo::cyber::record::RecordWriter::GetChannelList ( ) const

overridevirtual

Get channel list.

Returns: List container with all channel name string.

Implements apollo::cyber::record::RecordBase.

◆ GetMessageNumber()

uint64_t apollo::cyber::record::RecordWriter::GetMessageNumber ( const std::string & channel_name ) const

overridevirtual

Get message number by channel name.

Parameters

channel_name

Returns: Message number.

Implements apollo::cyber::record::RecordBase.

◆ GetMessageType()

const std::string& apollo::cyber::record::RecordWriter::GetMessageType ( const std::string & channel_name ) const

overridevirtual

Get message type by channel name.

Parameters

channel_name

Returns: Message type.

Implements apollo::cyber::record::RecordBase.

◆ GetProtoDesc()

const std::string& apollo::cyber::record::RecordWriter::GetProtoDesc ( const std::string & channel_name ) const

overridevirtual

Get proto descriptor string by channel name.

Parameters

channel_name

Returns: Proto descriptor string by channel name.

Implements apollo::cyber::record::RecordBase.

◆ IsNewChannel()

bool apollo::cyber::record::RecordWriter::IsNewChannel ( const std::string & channel_name ) const

Is a new channel recording or not.

Returns: True for yes, false for no.

◆ Open()

bool apollo::cyber::record::RecordWriter::Open ( const std::string & file )

Open a record to write.

Parameters

file

Returns: True for success, false for fail.

◆ SetIntervalOfFileSegmentation()

bool apollo::cyber::record::RecordWriter::SetIntervalOfFileSegmentation ( uint64_t time_sec )

Set max interval (Second) to segment record file.

Parameters

time_sec

Returns: True for success, false for fail.

◆ SetSizeOfFileSegmentation()

bool apollo::cyber::record::RecordWriter::SetSizeOfFileSegmentation ( uint64_t size_kilobytes )

Set max size (KB) to segment record file.

Parameters

size_kilobytes

Returns: True for success, false for fail.

◆ WriteChannel()

bool apollo::cyber::record::RecordWriter::WriteChannel	(	const std::string &	channel_name,
		const std::string &	message_type,
		const std::string &	proto_desc
	)

Write a channel to record.

Parameters

channel_name
message_type
proto_desc

Returns: True for success, false for fail.

◆ WriteMessage() [1/3]

template<typename MessageT >

bool apollo::cyber::record::RecordWriter::WriteMessage	(	const std::string &	channel_name,
		const MessageT &	message,
		const uint64_t	time_nanosec,
		const std::string &	proto_desc = `""`
	)

Write a message to record.

Template Parameters

MessageT

Parameters

channel_name
message
time_nanosec
proto_desc

Returns: True for success, false for fail.

◆ WriteMessage() [2/3]

template<>

bool apollo::cyber::record::RecordWriter::WriteMessage	(	const std::string &	channel_name,
		const std::string &	message,
		const uint64_t	time_nanosec,
		const std::string &	proto_desc
	)

inline

◆ WriteMessage() [3/3]

template<>

bool apollo::cyber::record::RecordWriter::WriteMessage	(	const std::string &	channel_name,
		const std::shared_ptr< message::RawMessage > &	message,
		const uint64_t	time_nanosec,
		const std::string &	proto_desc
	)

inline

The documentation for this class was generated from the following file:

cyber/record/record_writer.h
