apollo::cyber::record::RecordReader Class Reference

The record reader. More...

#include <record_reader.h>

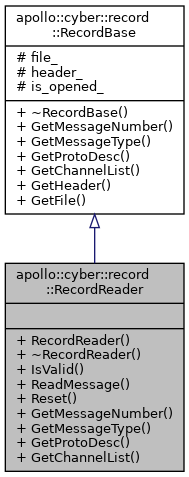

Inheritance diagram for apollo::cyber::record::RecordReader:

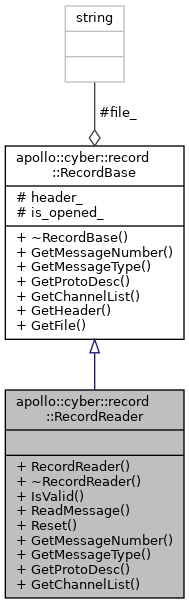

Collaboration diagram for apollo::cyber::record::RecordReader:

Public Types
using	FileReaderPtr = std::unique_ptr< RecordFileReader >
using	ChannelInfoMap = std::unordered_map< std::string, proto::ChannelCache >

Public Member Functions
	RecordReader (const std::string &file)
	The constructor with record file path as parameter. More...
virtual	~RecordReader ()
	The destructor. More...
bool	IsValid () const
	Is this record reader is valid. More...
bool	ReadMessage (RecordMessage *message, uint64_t begin_time=0, uint64_t end_time=std::numeric_limits< uint64_t >::max())
	Read one message from reader. More...
void	Reset ()
	Reset the message index of record reader. More...
uint64_t	GetMessageNumber (const std::string &channel_name) const override
	Get message number by channel name. More...
const std::string &	GetMessageType (const std::string &channel_name) const override
	Get message type by channel name. More...
const std::string &	GetProtoDesc (const std::string &channel_name) const override
	Get proto descriptor string by channel name. More...
std::set< std::string >	GetChannelList () const override
	Get channel list. More...
Public Member Functions inherited from apollo::cyber::record::RecordBase
virtual	~RecordBase ()=default
	Destructor. More...
const proto::Header &	GetHeader () const
	Get record header. More...
const std::string	GetFile () const
	Get record file path. More...

Additional Inherited Members
Protected Attributes inherited from apollo::cyber::record::RecordBase
std::string	file_
proto::Header	header_
bool	is_opened_ = false

Detailed Description

The record reader.

Member Typedef Documentation

ChannelInfoMap

using apollo::cyber::record::RecordReader::ChannelInfoMap = std::unordered_map<std::string, proto::ChannelCache>

FileReaderPtr

using apollo::cyber::record::RecordReader::FileReaderPtr = std::unique_ptr<RecordFileReader>

Constructor & Destructor Documentation

RecordReader()

apollo::cyber::record::RecordReader::RecordReader ( const std::string &  file )

explicit

The constructor with record file path as parameter.

Parameters

file

~RecordReader()

virtual apollo::cyber::record::RecordReader::~RecordReader ( )

virtual

The destructor.

Member Function Documentation

GetChannelList()

std::set<std::string> apollo::cyber::record::RecordReader::GetChannelList ( ) const

overridevirtual

Get channel list.

Returns

List container with all channel name string.

Implements apollo::cyber::record::RecordBase.

GetMessageNumber()

uint64_t apollo::cyber::record::RecordReader::GetMessageNumber ( const std::string &  channel_name ) const

overridevirtual

Get message number by channel name.

Parameters

channel_name

Returns

Message number.

Implements apollo::cyber::record::RecordBase.

GetMessageType()

const std::string& apollo::cyber::record::RecordReader::GetMessageType ( const std::string &  channel_name ) const

overridevirtual

Get message type by channel name.

Parameters

channel_name

Returns

Message type.

Implements apollo::cyber::record::RecordBase.

GetProtoDesc()

const std::string& apollo::cyber::record::RecordReader::GetProtoDesc ( const std::string &  channel_name ) const

overridevirtual

Get proto descriptor string by channel name.

Parameters

channel_name

Returns

Proto descriptor string by channel name.

Implements apollo::cyber::record::RecordBase.

IsValid()

bool apollo::cyber::record::RecordReader::IsValid ( ) const

inline

Is this record reader is valid.

Returns

True for valid, false for not.

ReadMessage()

bool apollo::cyber::record::RecordReader::ReadMessage	(	RecordMessage *	message,
		uint64_t	begin_time = 0,
		uint64_t	end_time = std::numeric_limits< uint64_t >::max()
	)

Read one message from reader.

Parameters

message
begin_time
end_time

Returns

True for success, false for not.

Reset()

void apollo::cyber::record::RecordReader::Reset

(

)

Reset the message index of record reader.

---

The documentation for this class was generated from the following file:

• cyber/record/record_reader.h
