apollo::canbus::lincoln::Gps6d Class Reference

one of the protocol data of lincoln vehicle More...

#include <gps_6d.h>

Inheritance diagram for apollo::canbus::lincoln::Gps6d:

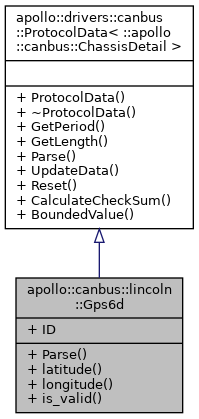

Collaboration diagram for apollo::canbus::lincoln::Gps6d:

Public Member Functions
virtual void	Parse (const std::uint8_t *bytes, int32_t length, ChassisDetail *chassis_detail) const
double	latitude (const std::uint8_t *bytes, int32_t length) const
	get latitude from byte array config detail: {'name': 'latitude', 'offset': 0.0, 'precision': 3.3333333e-07, 'len': 31, 'f_type': 'value', 'is_signed_var': True, 'physical_range': '[0|0]', 'bit': 0, 'type': 'double', 'order': 'intel', 'physical_unit': '"degrees"'} More...
double	longitude (const std::uint8_t *bytes, int32_t length) const
	get longitude from byte array config detail: {'name': 'longitude', 'offset': 0.0, 'precision': 3.3333333e-07, 'len': 31, 'f_type': 'value', 'is_signed_var': True, 'physical_range': '[0|0]', 'bit': 32, 'type': 'double', 'order': 'intel', 'physical_unit': '"degrees"'} More...
bool	is_valid (const std::uint8_t *bytes, int32_t length) const
	check is_valid from byte array config detail: {'name': 'valid', 'offset': 0.0, 'precision': 1.0, 'len': 1, 'f_type': 'valid', 'is_signed_var': False, 'physical_range': '[0|0]', 'bit': 63, 'type': 'bool', 'order': 'intel', 'physical_unit': '""'} More...
Public Member Functions inherited from apollo::drivers::canbus::ProtocolData< ::apollo::canbus::ChassisDetail >
	ProtocolData ()=default
	construct protocol data. More...
virtual	~ProtocolData ()=default
	destruct protocol data. More...
virtual uint32_t	GetPeriod () const
virtual int32_t	GetLength () const
virtual void	Parse (const uint8_t *bytes, int32_t length, ::apollo::canbus::ChassisDetail *sensor_data) const
virtual void	UpdateData (uint8_t *data)
virtual void	Reset ()

Static Public Attributes
static const int32_t	ID

Additional Inherited Members
Static Public Member Functions inherited from apollo::drivers::canbus::ProtocolData< ::apollo::canbus::ChassisDetail >
static std::uint8_t	CalculateCheckSum (const uint8_t *input, const uint32_t length)
	static function, used to calculate the checksum of input array. More...
static T	BoundedValue (T lower, T upper, T val)

Detailed Description

one of the protocol data of lincoln vehicle

Member Function Documentation

is_valid()

bool apollo::canbus::lincoln::Gps6d::is_valid	(	const std::uint8_t *	bytes,
		int32_t	length
	)		const

check is_valid from byte array config detail: {'name': 'valid', 'offset': 0.0, 'precision': 1.0, 'len': 1, 'f_type': 'valid', 'is_signed_var': False, 'physical_range': '[0|0]', 'bit': 63, 'type': 'bool', 'order': 'intel', 'physical_unit': '""'}

Parameters

bytes	a pointer to the byte array
length	the length of the byte array

Returns

the boolean value of is_valid bit

latitude()

double apollo::canbus::lincoln::Gps6d::latitude	(	const std::uint8_t *	bytes,
		int32_t	length
	)		const

get latitude from byte array config detail: {'name': 'latitude', 'offset': 0.0, 'precision': 3.3333333e-07, 'len': 31, 'f_type': 'value', 'is_signed_var': True, 'physical_range': '[0|0]', 'bit': 0, 'type': 'double', 'order': 'intel', 'physical_unit': '"degrees"'}

Parameters

bytes	a pointer to the byte array
length	the length of the byte array

Returns

the value of latitude

longitude()

double apollo::canbus::lincoln::Gps6d::longitude	(	const std::uint8_t *	bytes,
		int32_t	length
	)		const

get longitude from byte array config detail: {'name': 'longitude', 'offset': 0.0, 'precision': 3.3333333e-07, 'len': 31, 'f_type': 'value', 'is_signed_var': True, 'physical_range': '[0|0]', 'bit': 32, 'type': 'double', 'order': 'intel', 'physical_unit': '"degrees"'}

Parameters

bytes	a pointer to the byte array
length	the length of the byte array

Returns

the value of longitude

Parse()

virtual void apollo::canbus::lincoln::Gps6d::Parse ( const std::uint8_t *  bytes, int32_t  length, ChassisDetail *  chassis_detail  ) const

virtual

Member Data Documentation

ID

const int32_t apollo::canbus::lincoln::Gps6d::ID

static

---

The documentation for this class was generated from the following file:

• modules/canbus/vehicle/lincoln/protocol/gps_6d.h
