apollo::canbus::lincoln::Gear66 Class Reference

one of the protocol data of lincoln vehicle More...

#include <gear_66.h>

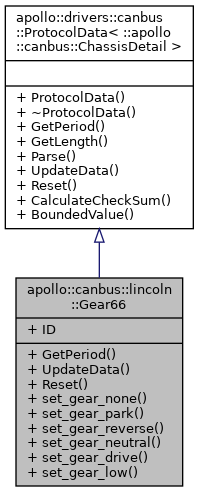

Inheritance diagram for apollo::canbus::lincoln::Gear66:

Collaboration diagram for apollo::canbus::lincoln::Gear66:

Public Member Functions
virtual uint32_t	GetPeriod () const
	get the data period More...
virtual void	UpdateData (uint8_t *data)
	update the data More...
virtual void	Reset ()
	reset the private variables More...
Gear66 *	set_gear_none ()
	set gear to none More...
Gear66 *	set_gear_park ()
	set gear to park More...
Gear66 *	set_gear_reverse ()
	set gear to reverse More...
Gear66 *	set_gear_neutral ()
	set gear to neutral More...
Gear66 *	set_gear_drive ()
	set gear to drive More...
Gear66 *	set_gear_low ()
	set gear to low More...
Public Member Functions inherited from apollo::drivers::canbus::ProtocolData< ::apollo::canbus::ChassisDetail >
	ProtocolData ()=default
	construct protocol data. More...
virtual	~ProtocolData ()=default
	destruct protocol data. More...
virtual int32_t	GetLength () const
virtual void	Parse (const uint8_t *bytes, int32_t length, ::apollo::canbus::ChassisDetail *sensor_data) const

Static Public Attributes
static const int32_t	ID

Additional Inherited Members
Static Public Member Functions inherited from apollo::drivers::canbus::ProtocolData< ::apollo::canbus::ChassisDetail >
static std::uint8_t	CalculateCheckSum (const uint8_t *input, const uint32_t length)
	static function, used to calculate the checksum of input array. More...
static T	BoundedValue (T lower, T upper, T val)

Detailed Description

one of the protocol data of lincoln vehicle

Member Function Documentation

GetPeriod()

virtual uint32_t apollo::canbus::lincoln::Gear66::GetPeriod ( ) const

virtual

get the data period

Returns

the value of data period

Reimplemented from apollo::drivers::canbus::ProtocolData< ::apollo::canbus::ChassisDetail >.

Reset()

virtual void apollo::canbus::lincoln::Gear66::Reset ( )

virtual

reset the private variables

Reimplemented from apollo::drivers::canbus::ProtocolData< ::apollo::canbus::ChassisDetail >.

set_gear_drive()

Gear66* apollo::canbus::lincoln::Gear66::set_gear_drive

(

)

set gear to drive

Returns

a this pointer to the instance itself

set_gear_low()

Gear66* apollo::canbus::lincoln::Gear66::set_gear_low

(

)

set gear to low

Returns

a this pointer to the instance itself

set_gear_neutral()

Gear66* apollo::canbus::lincoln::Gear66::set_gear_neutral

(

)

set gear to neutral

Returns

a this pointer to the instance itself

set_gear_none()

Gear66* apollo::canbus::lincoln::Gear66::set_gear_none

(

)

set gear to none

Returns

a this pointer to the instance itself

set_gear_park()

Gear66* apollo::canbus::lincoln::Gear66::set_gear_park

(

)

set gear to park

Returns

a this pointer to the instance itself

set_gear_reverse()

Gear66* apollo::canbus::lincoln::Gear66::set_gear_reverse

(

)

set gear to reverse

Returns

a this pointer to the instance itself

UpdateData()

virtual void apollo::canbus::lincoln::Gear66::UpdateData ( uint8_t *  data )

virtual

update the data

Parameters

data	a pointer to the data to be updated

Reimplemented from apollo::drivers::canbus::ProtocolData< ::apollo::canbus::ChassisDetail >.

Member Data Documentation

ID

const int32_t apollo::canbus::lincoln::Gear66::ID

static

---

The documentation for this class was generated from the following file:

• modules/canbus/vehicle/lincoln/protocol/gear_66.h
