A wrapper around SyncedMemory holders serving as the basic computational unit for images, feature maps, etc. More...

#include <blob.h>

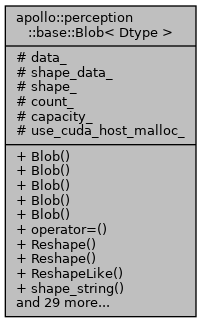

Collaboration diagram for apollo::perception::base::Blob< Dtype >:

Public Member Functions
	Blob ()

	Blob (bool use_cuda_host_malloc)

	Blob (const int num, const int channels, const int height, const int width, const bool use_cuda_host_malloc=false)
	Deprecated; use `Blob(const std::vector<int>& shape)`. More...

	Blob (const std::vector< int > &shape, const bool use_cuda_host_malloc=false)

	Blob (const Blob &)=delete

void	operator= (const Blob &)=delete

void	Reshape (const int num, const int channels, const int height, const int width)
	Deprecated; use `Reshape(const std::vector<int>& shape)`. More...

void	Reshape (const std::vector< int > &shape)
	Change the dimensions of the blob, allocating new memory if necessary. More...

void	ReshapeLike (const Blob &other)

std::string	shape_string () const

const std::vector< int > &	shape () const

int	shape (int index) const
	Returns the dimension of the index-th axis (or the negative index-th axis from the end, if index is negative). More...

int	num_axes () const

int	count () const

int	count (int start_axis, int end_axis) const
	Compute the volume of a slice; i.e., the product of dimensions among a range of axes. More...

int	count (int start_axis) const
	Compute the volume of a slice spanning from a particular first axis to the final axis. More...

int	CanonicalAxisIndex (int axis_index) const
	create RoI Blob. More...

int	num () const
	Deprecated legacy shape accessor num: use shape(0) instead. More...

int	channels () const
	Deprecated legacy shape accessor channels: use shape(1) instead. More...

int	height () const
	Deprecated legacy shape accessor height: use shape(2) instead. More...

int	width () const
	Deprecated legacy shape accessor width: use shape(3) instead. More...

int	LegacyShape (int index) const

int	offset (const int n, const int c=0, const int h=0, const int w=0) const

int	offset (const std::vector< int > &indices) const

void	CopyFrom (const Blob< Dtype > &source, bool reshape=false)
	Copy from a source Blob. More...

Dtype	data_at (const int n, const int c, const int h, const int w) const

Dtype	data_at (const std::vector< int > &index) const

const std::shared_ptr< SyncedMemory > &	data () const

const Dtype *	cpu_data () const

void	set_cpu_data (Dtype *data)

const int *	gpu_shape () const

const Dtype *	gpu_data () const

void	set_gpu_data (Dtype *data)

Dtype *	mutable_cpu_data ()

Dtype *	mutable_gpu_data ()

void	set_head_gpu ()

void	set_head_cpu ()

SyncedMemory::SyncedHead	head () const

void	ShareData (const Blob &other)
	Set the data_ std::shared_ptr to point to the SyncedMemory holding the data_ of Blob other – useful in Layers which simply perform a copy in their Forward pass. More...

Protected Attributes
std::shared_ptr< SyncedMemory >	data_

std::shared_ptr< SyncedMemory >	shape_data_

std::vector< int >	shape_

int	count_

int	capacity_

bool	use_cuda_host_malloc_

Detailed Description

template<typename Dtype>
class apollo::perception::base::Blob< Dtype >

A wrapper around SyncedMemory holders serving as the basic computational unit for images, feature maps, etc.

TODO(dox): more thorough description.

Constructor & Destructor Documentation

◆ Blob() [1/5]

template<typename Dtype>

apollo::perception::base::Blob< Dtype >::Blob ( )

inline

◆ Blob() [2/5]

template<typename Dtype>

apollo::perception::base::Blob< Dtype >::Blob ( bool use_cuda_host_malloc )

inlineexplicit

◆ Blob() [3/5]

template<typename Dtype>

apollo::perception::base::Blob< Dtype >::Blob	(	const int	num,
		const int	channels,
		const int	height,
		const int	width,
		const bool	use_cuda_host_malloc = `false`
	)

Deprecated; use Blob(const std::vector<int>& shape).

◆ Blob() [4/5]

template<typename Dtype>

apollo::perception::base::Blob< Dtype >::Blob	(	const std::vector< int > &	shape,
		const bool	use_cuda_host_malloc = `false`
	)

explicit

◆ Blob() [5/5]

template<typename Dtype>

apollo::perception::base::Blob< Dtype >::Blob ( const Blob< Dtype > & )

delete

Member Function Documentation

◆ CanonicalAxisIndex()

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::CanonicalAxisIndex ( int axis_index ) const

inline

create RoI Blob.

Parameters

roi_begin	begin of roi
roi_end	end of roi Returns the 'canonical' version of a (usually) user-specified axis, allowing for negative indexing (e.g., -1 for the last axis).
axis_index	the axis index. If 0 <= index < num_axes(), return index. If -num_axes <= index <= -1, return (num_axes() - (-index)), e.g., the last axis index (num_axes() - 1) if index == -1, the second to last if index == -2, etc. Dies on out of range index.

◆ channels()

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::channels ( ) const

inline

Deprecated legacy shape accessor channels: use shape(1) instead.

◆ CopyFrom()

template<typename Dtype>

void apollo::perception::base::Blob< Dtype >::CopyFrom	(	const Blob< Dtype > &	source,
		bool	reshape = `false`
	)

Copy from a source Blob.

Parameters

source	the Blob to copy from
reshape	if false, require this Blob to be pre-shaped to the shape of other (and die otherwise); if true, Reshape this Blob to other's shape if necessary

◆ count() [1/3]

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::count ( ) const

inline

◆ count() [2/3]

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::count	(	int	start_axis,
		int	end_axis
	)		const

inline

Compute the volume of a slice; i.e., the product of dimensions among a range of axes.

Parameters

start_axis	The first axis to include in the slice.
end_axis	The first axis to exclude from the slice.

◆ count() [3/3]

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::count ( int start_axis ) const

inline

Compute the volume of a slice spanning from a particular first axis to the final axis.

Parameters

start_axis The first axis to include in the slice.

◆ cpu_data()

template<typename Dtype>

const Dtype* apollo::perception::base::Blob< Dtype >::cpu_data ( ) const

◆ data()

template<typename Dtype>

const std::shared_ptr<SyncedMemory>& apollo::perception::base::Blob< Dtype >::data ( ) const

inline

◆ data_at() [1/2]

template<typename Dtype>

Dtype apollo::perception::base::Blob< Dtype >::data_at	(	const int	n,
		const int	c,
		const int	h,
		const int	w
	)		const

inline

◆ data_at() [2/2]

template<typename Dtype>

Dtype apollo::perception::base::Blob< Dtype >::data_at ( const std::vector< int > & index ) const

inline

◆ gpu_data()

template<typename Dtype>

const Dtype* apollo::perception::base::Blob< Dtype >::gpu_data ( ) const

◆ gpu_shape()

template<typename Dtype>

const int* apollo::perception::base::Blob< Dtype >::gpu_shape ( ) const

◆ head()

template<typename Dtype>

SyncedMemory::SyncedHead apollo::perception::base::Blob< Dtype >::head ( ) const

inline

◆ height()

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::height ( ) const

inline

Deprecated legacy shape accessor height: use shape(2) instead.

◆ LegacyShape()

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::LegacyShape ( int index ) const

inline

◆ mutable_cpu_data()

template<typename Dtype>

Dtype* apollo::perception::base::Blob< Dtype >::mutable_cpu_data ( )

◆ mutable_gpu_data()

template<typename Dtype>

Dtype* apollo::perception::base::Blob< Dtype >::mutable_gpu_data ( )

◆ num()

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::num ( ) const

inline

Deprecated legacy shape accessor num: use shape(0) instead.

◆ num_axes()

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::num_axes ( ) const

inline

◆ offset() [1/2]

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::offset	(	const int	n,
		const int	c = `0`,
		const int	h = `0`,
		const int	w = `0`
	)		const

inline

◆ offset() [2/2]

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::offset ( const std::vector< int > & indices ) const

inline

◆ operator=()

template<typename Dtype>

void apollo::perception::base::Blob< Dtype >::operator= ( const Blob< Dtype > & )

delete

◆ Reshape() [1/2]

template<typename Dtype>

void apollo::perception::base::Blob< Dtype >::Reshape	(	const int	num,
		const int	channels,
		const int	height,
		const int	width
	)

Deprecated; use Reshape(const std::vector<int>& shape).

◆ Reshape() [2/2]

template<typename Dtype>

void apollo::perception::base::Blob< Dtype >::Reshape ( const std::vector< int > & shape )

Change the dimensions of the blob, allocating new memory if necessary.

This function can be called both to create an initial allocation of memory, and to adjust the dimensions of a top blob during Layer::Reshape or Layer::Forward. When changing the size of blob, memory will only be reallocated if sufficient memory does not already exist, and excess memory will never be freed.

Note that reshaping an input blob and immediately calling Net::Backward is an error; either Net::Forward or Net::Reshape need to be called to propagate the new input shape to higher layers.

◆ ReshapeLike()

template<typename Dtype>

void apollo::perception::base::Blob< Dtype >::ReshapeLike ( const Blob< Dtype > & other )

◆ set_cpu_data()

template<typename Dtype>

void apollo::perception::base::Blob< Dtype >::set_cpu_data ( Dtype * data )

◆ set_gpu_data()

template<typename Dtype>

void apollo::perception::base::Blob< Dtype >::set_gpu_data ( Dtype * data )

◆ set_head_cpu()

template<typename Dtype>

void apollo::perception::base::Blob< Dtype >::set_head_cpu ( )

inline

◆ set_head_gpu()

template<typename Dtype>

void apollo::perception::base::Blob< Dtype >::set_head_gpu ( )

inline

◆ shape() [1/2]

template<typename Dtype>

const std::vector<int>& apollo::perception::base::Blob< Dtype >::shape ( ) const

inline

◆ shape() [2/2]

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::shape ( int index ) const

inline

Returns the dimension of the index-th axis (or the negative index-th axis from the end, if index is negative).

Parameters

index the axis index, which may be negative as it will be "canonicalized" using CanonicalAxisIndex. Dies on out of range index.

◆ shape_string()

template<typename Dtype>

std::string apollo::perception::base::Blob< Dtype >::shape_string ( ) const

inline

◆ ShareData()

template<typename Dtype>

void apollo::perception::base::Blob< Dtype >::ShareData ( const Blob< Dtype > & other )

Set the data_ std::shared_ptr to point to the SyncedMemory holding the data_ of Blob other – useful in Layers which simply perform a copy in their Forward pass.

This deallocates the SyncedMemory holding this Blob's data_, as std::shared_ptr calls its destructor when reset with the "=" operator.

◆ width()

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::width ( ) const

inline

Deprecated legacy shape accessor width: use shape(3) instead.

Member Data Documentation

◆ capacity_

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::capacity_

protected

◆ count_

template<typename Dtype>

int apollo::perception::base::Blob< Dtype >::count_

protected

◆ data_

template<typename Dtype>

std::shared_ptr<SyncedMemory> apollo::perception::base::Blob< Dtype >::data_

protected

◆ shape_

template<typename Dtype>

std::vector<int> apollo::perception::base::Blob< Dtype >::shape_

protected

◆ shape_data_

template<typename Dtype>

std::shared_ptr<SyncedMemory> apollo::perception::base::Blob< Dtype >::shape_data_

protected

◆ use_cuda_host_malloc_

template<typename Dtype>

bool apollo::perception::base::Blob< Dtype >::use_cuda_host_malloc_

protected

The documentation for this class was generated from the following file:

modules/perception/base/blob.h

Public Member Functions

Protected Attributes

Detailed Description

template<typename Dtype> class apollo::perception::base::Blob< Dtype >

Constructor & Destructor Documentation

◆ Blob() [1/5]

◆ Blob() [2/5]

◆ Blob() [3/5]

◆ Blob() [4/5]

◆ Blob() [5/5]

Member Function Documentation

◆ CanonicalAxisIndex()

◆ channels()

◆ CopyFrom()

◆ count() [1/3]

◆ count() [2/3]

◆ count() [3/3]

◆ cpu_data()

◆ data()

◆ data_at() [1/2]

◆ data_at() [2/2]

◆ gpu_data()

◆ gpu_shape()

◆ head()

◆ height()

◆ LegacyShape()

◆ mutable_cpu_data()

◆ mutable_gpu_data()

◆ num()

◆ num_axes()

◆ offset() [1/2]

◆ offset() [2/2]

◆ operator=()

◆ Reshape() [1/2]

◆ Reshape() [2/2]

◆ ReshapeLike()

◆ set_cpu_data()

◆ set_gpu_data()

◆ set_head_cpu()

◆ set_head_gpu()

◆ shape() [1/2]

◆ shape() [2/2]

◆ shape_string()

◆ ShareData()

◆ width()

Member Data Documentation

◆ capacity_

◆ count_

◆ data_

◆ shape_

◆ shape_data_

◆ use_cuda_host_malloc_

template<typename Dtype>
class apollo::perception::base::Blob< Dtype >
