Implements a class of 2-dimensional vectors. More...
#include <vec2d.h>

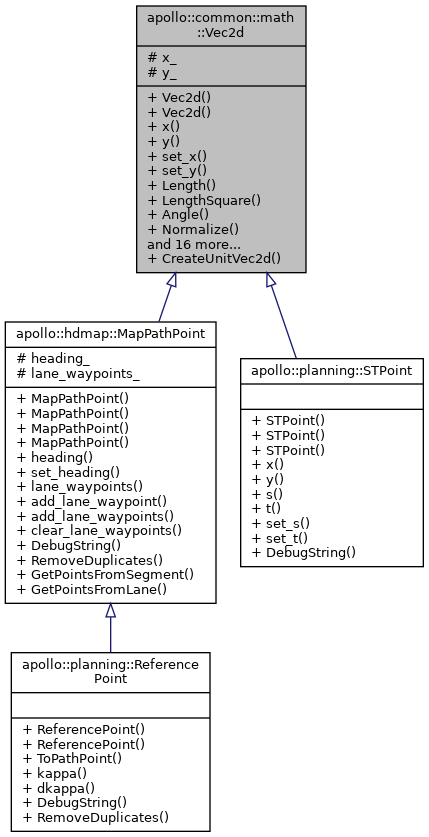

Inheritance diagram for apollo::common::math::Vec2d:
Collaboration diagram for apollo::common::math::Vec2d:
Public Member Functions | |
| constexpr | Vec2d (const double x, const double y) noexcept |
| Constructor which takes x- and y-coordinates. More... | |
| constexpr | Vec2d () noexcept |
| Constructor returning the zero vector. More... | |
| double | x () const |
| Getter for x component. More... | |
| double | y () const |
| Getter for y component. More... | |
| void | set_x (const double x) |
| Setter for x component. More... | |
| void | set_y (const double y) |
| Setter for y component. More... | |
| double | Length () const |
| Gets the length of the vector. More... | |
| double | LengthSquare () const |
| Gets the squared length of the vector. More... | |
| double | Angle () const |
| Gets the angle between the vector and the positive x semi-axis. More... | |
| void | Normalize () |
| Returns the unit vector that is co-linear with this vector. More... | |
| double | DistanceTo (const Vec2d &other) const |
| Returns the distance to the given vector. More... | |
| double | DistanceSquareTo (const Vec2d &other) const |
| Returns the squared distance to the given vector. More... | |
| double | CrossProd (const Vec2d &other) const |
| Returns the "cross" product between these two Vec2d (non-standard). More... | |
| double | InnerProd (const Vec2d &other) const |
| Returns the inner product between these two Vec2d. More... | |
| Vec2d | rotate (const double angle) const |
| rotate the vector by angle. More... | |
| void | SelfRotate (const double angle) |
| rotate the vector itself by angle. More... | |
| Vec2d | operator+ (const Vec2d &other) const |
| Sums two Vec2d. More... | |
| Vec2d | operator- (const Vec2d &other) const |
| Subtracts two Vec2d. More... | |
| Vec2d | operator* (const double ratio) const |
| Multiplies Vec2d by a scalar. More... | |
| Vec2d | operator/ (const double ratio) const |
| Divides Vec2d by a scalar. More... | |
| Vec2d & | operator+= (const Vec2d &other) |
| Sums another Vec2d to the current one. More... | |
| Vec2d & | operator-= (const Vec2d &other) |
| Subtracts another Vec2d to the current one. More... | |
| Vec2d & | operator*= (const double ratio) |
| Multiplies this Vec2d by a scalar. More... | |
| Vec2d & | operator/= (const double ratio) |
| Divides this Vec2d by a scalar. More... | |
| bool | operator== (const Vec2d &other) const |
| Compares two Vec2d. More... | |
| std::string | DebugString () const |
| Returns a human-readable string representing this object. More... | |
Static Public Member Functions | |
| static Vec2d | CreateUnitVec2d (const double angle) |
| Creates a unit-vector with a given angle to the positive x semi-axis. More... | |
Protected Attributes | |
| double | x_ = 0.0 |
| double | y_ = 0.0 |
Detailed Description
Implements a class of 2-dimensional vectors.
Constructor & Destructor Documentation
◆ Vec2d() [1/2]
|
inlinenoexcept |
Constructor which takes x- and y-coordinates.
◆ Vec2d() [2/2]
|
inlinenoexcept |
Constructor returning the zero vector.
Member Function Documentation
◆ Angle()
| double apollo::common::math::Vec2d::Angle | ( | ) | const |
Gets the angle between the vector and the positive x semi-axis.
◆ CreateUnitVec2d()
|
static |
Creates a unit-vector with a given angle to the positive x semi-axis.
◆ CrossProd()
| double apollo::common::math::Vec2d::CrossProd | ( | const Vec2d & | other | ) | const |
Returns the "cross" product between these two Vec2d (non-standard).
◆ DebugString()
| std::string apollo::common::math::Vec2d::DebugString | ( | ) | const |
Returns a human-readable string representing this object.
◆ DistanceSquareTo()
| double apollo::common::math::Vec2d::DistanceSquareTo | ( | const Vec2d & | other | ) | const |
Returns the squared distance to the given vector.
◆ DistanceTo()
| double apollo::common::math::Vec2d::DistanceTo | ( | const Vec2d & | other | ) | const |
Returns the distance to the given vector.
◆ InnerProd()
| double apollo::common::math::Vec2d::InnerProd | ( | const Vec2d & | other | ) | const |
Returns the inner product between these two Vec2d.
◆ Length()
| double apollo::common::math::Vec2d::Length | ( | ) | const |
Gets the length of the vector.
◆ LengthSquare()
| double apollo::common::math::Vec2d::LengthSquare | ( | ) | const |
Gets the squared length of the vector.
◆ Normalize()
| void apollo::common::math::Vec2d::Normalize | ( | ) |
Returns the unit vector that is co-linear with this vector.
◆ operator*()
| Vec2d apollo::common::math::Vec2d::operator* | ( | const double | ratio | ) | const |
Multiplies Vec2d by a scalar.
◆ operator*=()
| Vec2d& apollo::common::math::Vec2d::operator*= | ( | const double | ratio | ) |
Multiplies this Vec2d by a scalar.
◆ operator+()
◆ operator+=()
Sums another Vec2d to the current one.
◆ operator-()
◆ operator-=()
Subtracts another Vec2d to the current one.
◆ operator/()
◆ operator/=()
| Vec2d& apollo::common::math::Vec2d::operator/= | ( | const double | ratio | ) |
Divides this Vec2d by a scalar.
◆ operator==()
◆ rotate()
| Vec2d apollo::common::math::Vec2d::rotate | ( | const double | angle | ) | const |
rotate the vector by angle.
◆ SelfRotate()
| void apollo::common::math::Vec2d::SelfRotate | ( | const double | angle | ) |
rotate the vector itself by angle.
◆ set_x()
|
inline |
Setter for x component.
◆ set_y()
|
inline |
Setter for y component.
◆ x()
|
inline |
Getter for x component.
◆ y()
|
inline |
Getter for y component.
Member Data Documentation
◆ x_
|
protected |
◆ y_
|
protected |
The documentation for this class was generated from the following file:
- modules/common/math/vec2d.h
