RenderableMessage Class Reference

#include <renderable_message.h>

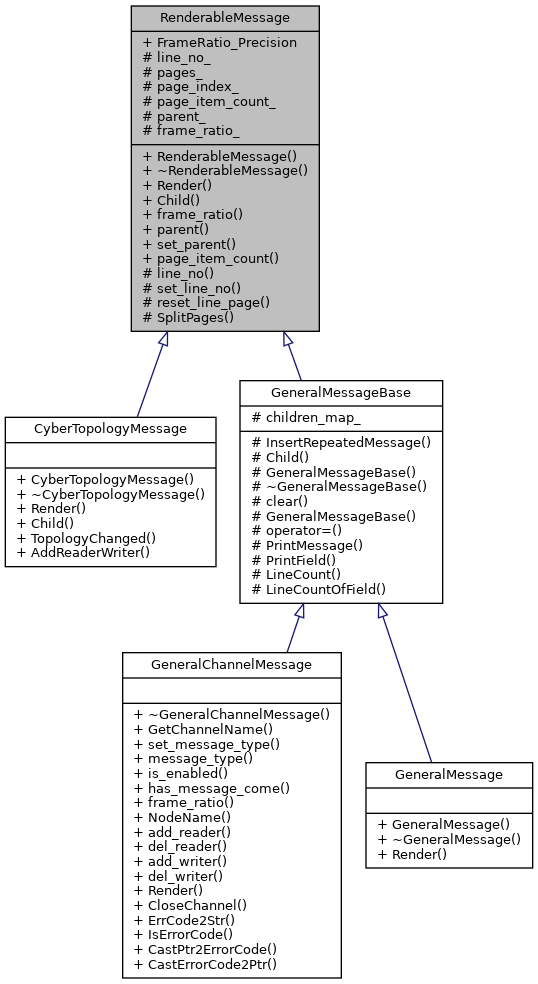

Inheritance diagram for RenderableMessage:

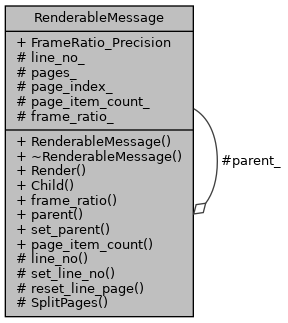

Collaboration diagram for RenderableMessage:

Public Member Functions
	RenderableMessage (RenderableMessage *parent=nullptr, int line_no=0)
virtual	~RenderableMessage ()
virtual int	Render (const Screen *s, int key)=0
virtual RenderableMessage *	Child (int) const =0
virtual double	frame_ratio (void)
RenderableMessage *	parent (void) const
void	set_parent (RenderableMessage *parent)
int	page_item_count (void) const

Static Public Attributes
static constexpr int	FrameRatio_Precision = 2

Protected Member Functions
int *	line_no (void)
void	set_line_no (int line_no)
void	reset_line_page (void)
void	SplitPages (int key)

Protected Attributes
int	line_no_
int	pages_
int	page_index_
int	page_item_count_
RenderableMessage *	parent_
double	frame_ratio_

Friends
class	Screen

Constructor & Destructor Documentation

RenderableMessage()

RenderableMessage::RenderableMessage ( RenderableMessage *  parent = nullptr, int  line_no = 0  )

inlineexplicit

~RenderableMessage()

virtual RenderableMessage::~RenderableMessage ( )

inlinevirtual

Member Function Documentation

Child()

virtual RenderableMessage* RenderableMessage::Child ( int  ) const

pure virtual

Implemented in GeneralMessageBase, and CyberTopologyMessage.

frame_ratio()

virtual double RenderableMessage::frame_ratio ( void  )

inlinevirtual

Reimplemented in GeneralChannelMessage.

line_no()

int* RenderableMessage::line_no ( void  )

inlineprotected

page_item_count()

int RenderableMessage::page_item_count ( void  ) const

inline

parent()

RenderableMessage* RenderableMessage::parent ( void  ) const

inline

Render()

virtual int RenderableMessage::Render ( const Screen *  s, int  key  )

pure virtual

Implemented in GeneralChannelMessage, CyberTopologyMessage, and GeneralMessage.

reset_line_page()

void RenderableMessage::reset_line_page ( void  )

inlineprotected

set_line_no()

void RenderableMessage::set_line_no ( int  line_no )

inlineprotected

set_parent()

void RenderableMessage::set_parent ( RenderableMessage *  parent )

inline

SplitPages()

void RenderableMessage::SplitPages ( int  key )

protected

Friends And Related Function Documentation

Screen

friend class Screen

friend

Member Data Documentation

frame_ratio_

double RenderableMessage::frame_ratio_

protected

FrameRatio_Precision

constexpr int RenderableMessage::FrameRatio_Precision = 2

static

line_no_

int RenderableMessage::line_no_

protected

page_index_

int RenderableMessage::page_index_

protected

page_item_count_

int RenderableMessage::page_item_count_

protected

pages_

int RenderableMessage::pages_

protected

parent_

RenderableMessage* RenderableMessage::parent_

protected

---

The documentation for this class was generated from the following file:

• cyber/tools/cyber_monitor/renderable_message.h
